Description

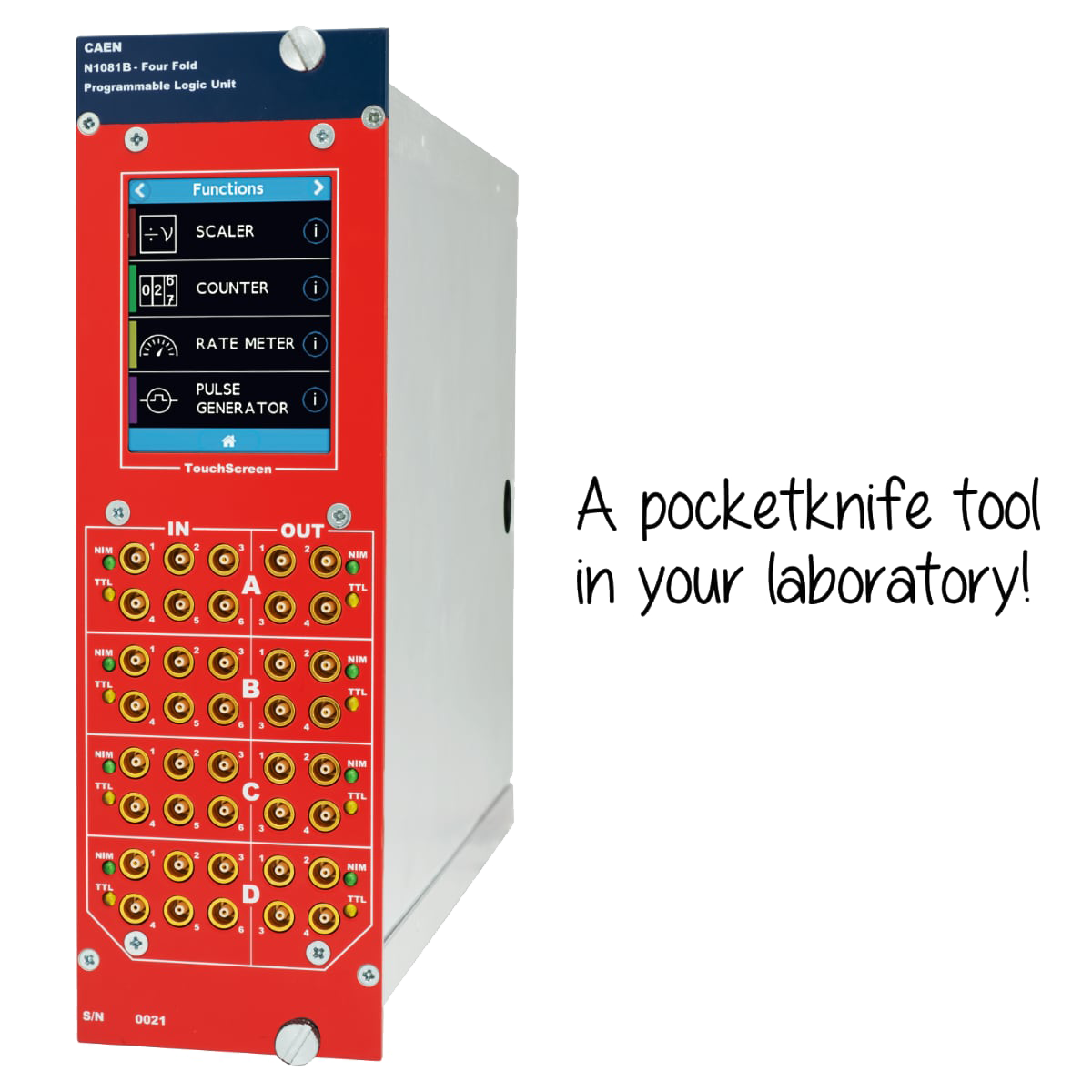

The DT1081B is a versatile Four-Fold Programmable Logic Unit in a compact desktop form factor, designed to implement a wide range of logic capabilities in experimental setups. It integrates four independent sections, each configurable with pre-programmed functions for logic operations, counting, timing, and pulse generation.
Each section features:
- 6 inputs accepting NIM, TTL, or analog signals, with leading-edge discrimination
- 4 outputs providing NIM or TTL signals
- Asynchronous Gate & Delay with 5 ns resolution
- Monostable output stage for precise pulse shaping
The module offers both local control via a 2.8” touchscreen display with intuitive widgets and remote control through a web-based GUI accessible via USB or Ethernet. No software installation is required.
Key functionalities include:
- Logic operations: AND, OR, MAJORITY, LUT, COINCIDENCE
- Counting modes: SCALER, COUNTER, RATE METER
- Timing applications: TIME, TAGGING, Time-of-Flight (ToF)
- Pulse generation: PULSE GENERATOR, DIGITAL GENERATOR, PATTERN GENERATOR
The DT1081B serves as a multifunctional tool, streamlining the implementation of complex logic schemes in nuclear and particle physics experiments.
