Description

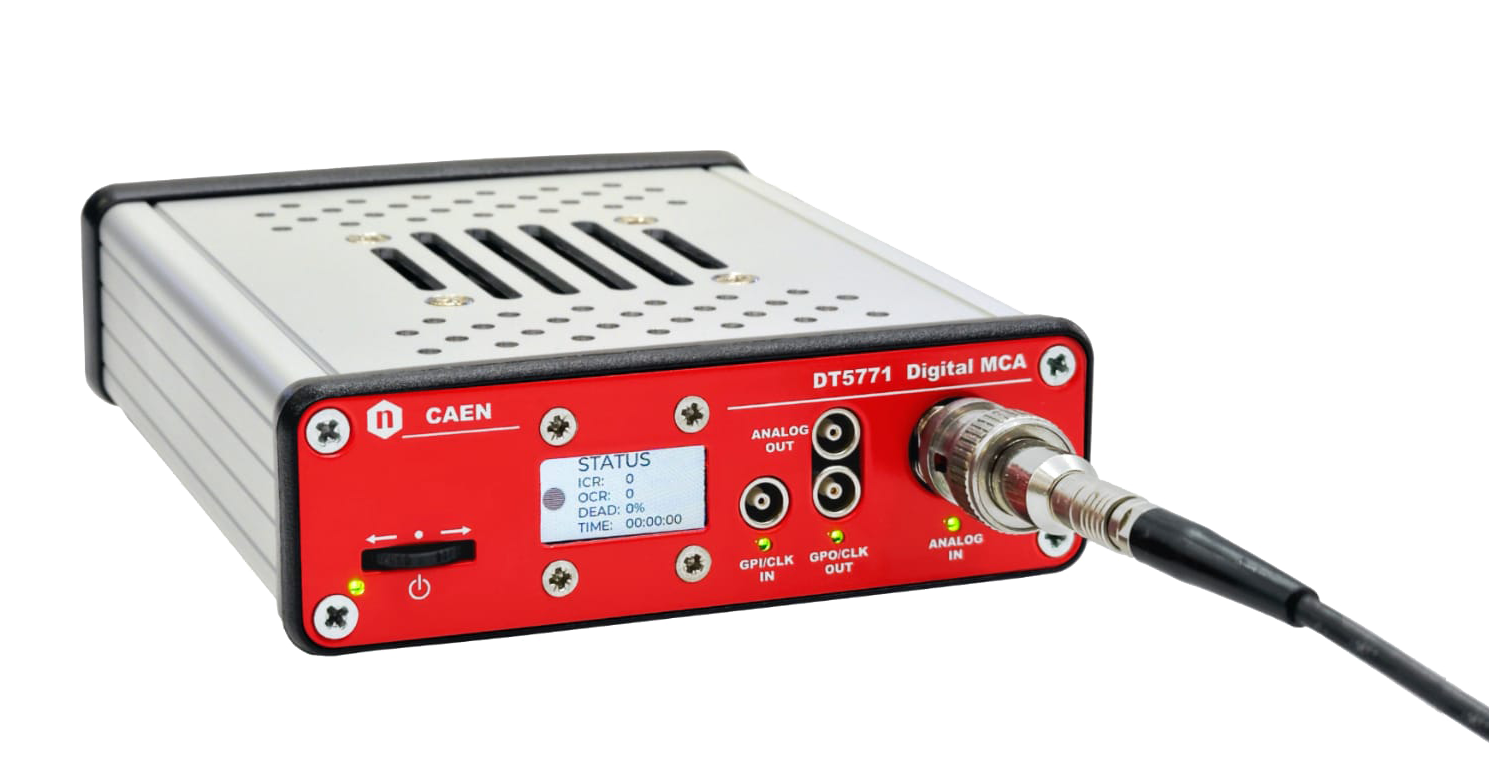

The DT5771 is a compact 1-channel Digital Multi-Channel Analyzer (MCA) designed for high-resolution gamma spectroscopy. It features a 14-bit / 200 MS/s ADC, supporting detectors like HPGe, Silicon, and scintillators (e.g., NaI, LaBr₃) connected via charge-sensitive preamplifiers.
Key features include:
- 64k-channel MCA with trapezoidal filtering for energy spectrum analysis
- Peak Detector Mode for timing and amplitude analysis
- Variable gain accommodating input ranges from 40 mVpp to 5 Vpp
- Selectable input termination: 1 kΩ or 50 Ω
- AC/DC coupling for maximum compatibility
- USB 2.0 and 1 Gbit Ethernet interfaces
- Web-based GUI for intuitive control and real-time spectral analysis
- DB9 connector for preamplifier power supply
- GPIO and Clock/Sync I/O for external triggers and multi-board synchronization
- Status LEDs for quick system diagnostics
The DT5771 offers a user-friendly web interface with Jupyter Lab for Python-based scripting. Seamlessly replacing the DT5770, it enhances digital signal processing for gamma spectroscopy with next-generation performance.
