AN-004 Synchronize multiple R5560 / R5560SE to for simultaneous sampling on multiple device

This application notes explains how to synchronize multiple R5560/R5560SE to extend the number of input channels sampled simultaneously.

This document covers the following task:

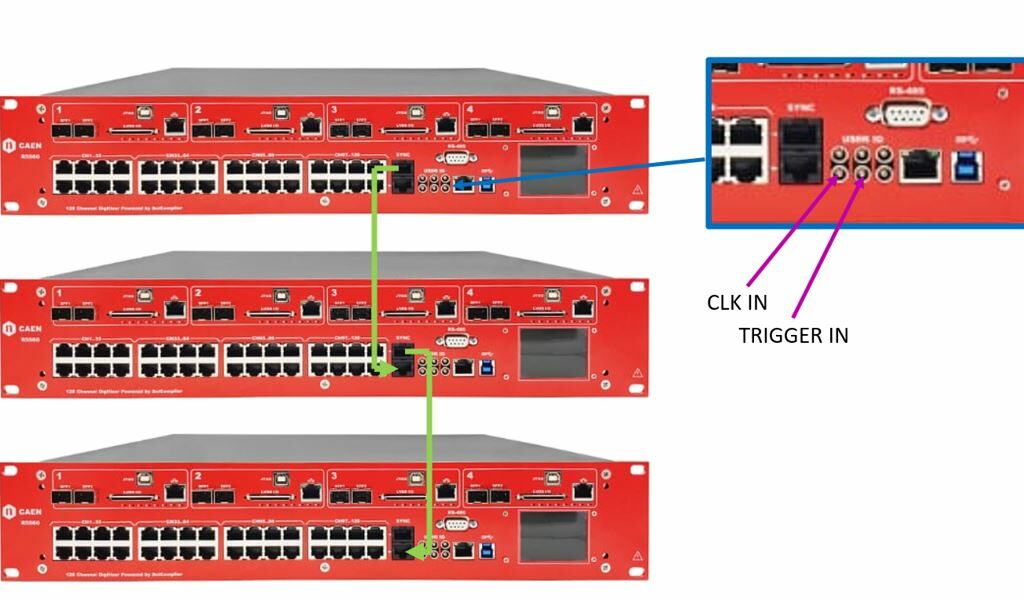

  • How to distribute a common clock
  • How to synchronize the acquisition between multiple DAQ and device
  • How to distribute common trigger signal

 To synchronize multiple device it is mandatory to have a DAQ and BASE operational system newer than 2022.7.0.1.
