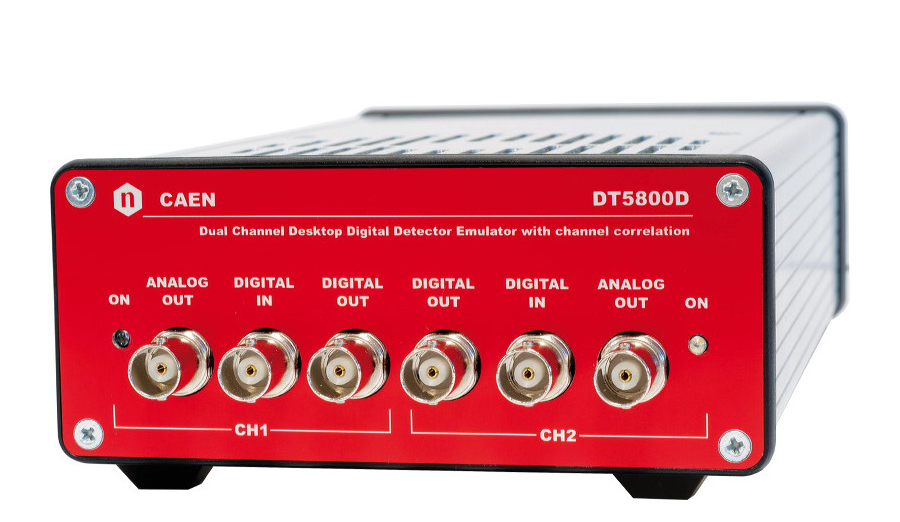

DT5800

Digital detector emulator

Description

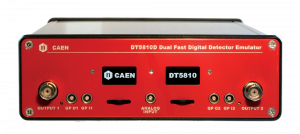

The DT5810 is the model of the Detector Emulator family with the fastest signal output.
Thanks to an updated and faster DAC it is now possible to emulate the behavior of the fast detectors on the market with 1 ns rise time. In addition this new model features an Analog Input that can be used to acquire spectra from a detector and emulate them later. It can also acquire signals coming from the detector and reproduce them real time together with generate pulses.
The output amplitude is selectable at ±2 V with 50 Ω or ±8 V at high impedance. The unit can operate in the same three modes as the 5800 Family (Pulser Mode, Emulation Mode and Waveform Generator Mode). In addition the minimum programmable delay is 1 ns/step, and the Function Generator supports only standard waveforms: e.g. sinusoidal, squared, ramp shape, etc…

FEATURES

• 125Msps 16 bit DAC
• Pulser/Emulator/Function Generator operating modes
• Energy spectrum emulation
• Time distribution emulation
• Custom signal shape emulation
• Pile-up emulation
• Noise and periodic interference emulation
• Baseline drift
• 12 ps/step programmable delay generator
• Correlated signals generation on the two output channels
• Two shape on the same channel for testing the pulse shape discrimination
• Continuous and pulsed reset pre-amplifier emulation

This product is sold with CAEN

Additional information

Channels

2

Energy Resolution (Pulser)

16-bit

Energy (Emulation)

14-bit

D/A Resolution

16-bit

D/A Sample rate

125 MHz

Output Range (Fast Edge)

±2 V (50 Ω), ±4 V (hi-Z)

Costant Rate Generation

Yes

Poisson Distribution

Yes

Maximum Rate

10 Mcps / 5 Mcps (Poisson)

Deadtime emulation

Yes

Exponential Signal (Digital RC Mode)

Yes

Memory based arbitrary shape generation

Yes

Decay Time

from 20 ns to 10 ms

Signal Shape Length

4096

Multiple shapes on a single channel

Yes (2 different)

Minimum rising time (fast mode)

8ns

Minimum rising time (slow mode)

30ns

Random Noise

Yes

White Noise (Gaussian)

Yes

Random Walk

Yes

1/f noise

Yes

Interference Generation

Yes

Baseline drift

Yes

Correlated events simulation

Yes

Time resolution

12ps

Additional channel for correlated event with indipendent statistics

Yes

Digital IO

1 In / 1 Out per channel

External Trigger

Yes

Trigger Out

Yes

Sequence of energy and time

Yes

Arbitrary Waveform Generation

1 Mcps wave

Function Generation

Yes (10 MHz)

Interface

USB 2

Power Supply

12 V – 4 A

DLL for automation

Yes (.net)

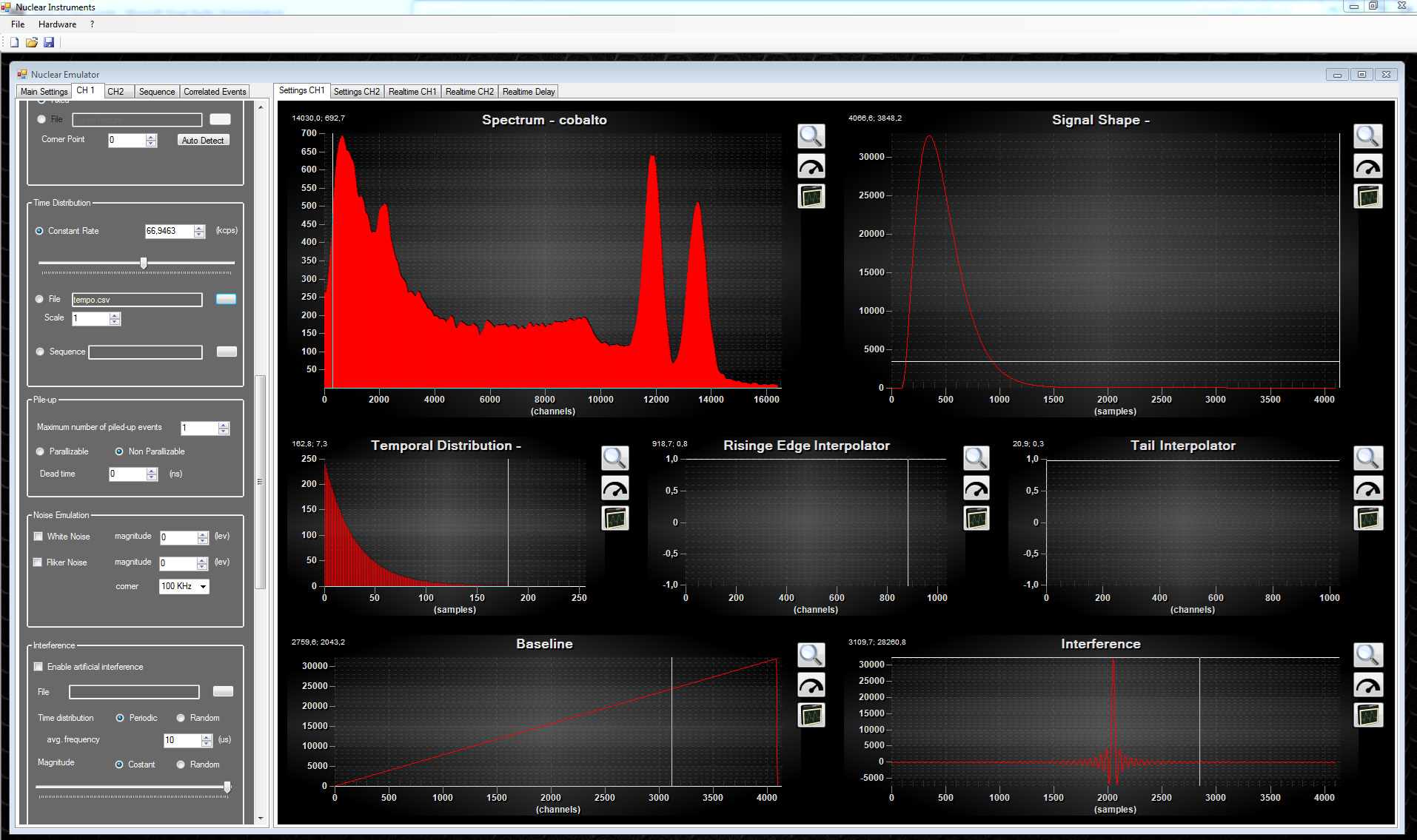

SOFTWARE: CAEN Detector Emulator

Yes
