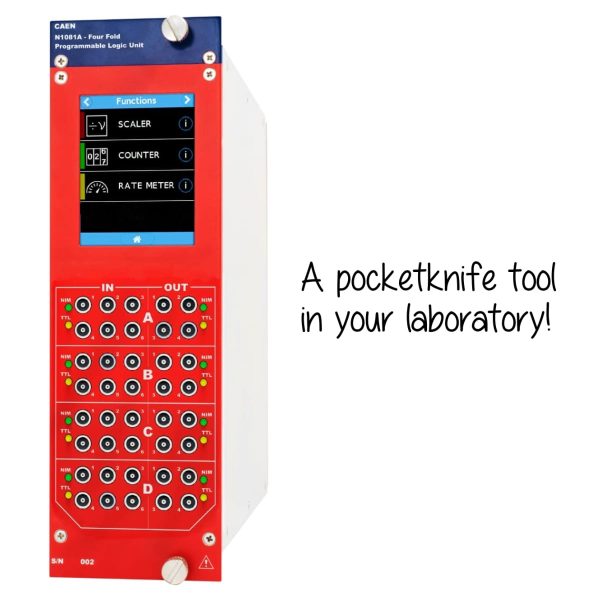

The N1081A is a laboratory tool that incorporates in a single NIM module the most common functionalities that you need to implement the logic capabilities of your experiment.
The module is organized in four sections, with 6 inputs and 4 outputs each (selectable impedance) accepting TTL/NIM signals. Each section is configurable independently according to one of the available pre-programmed functions, like scaler, counter, time stamping, digital pulse generator, etc. The section programming can be done using the 2.8” touch screen display or via the web-interface. Each section integrates a discriminator with programmable threshold and an asynchronous Gate&Delay with 5 ns resolution. This allows the user to trim at best the needed parameters and to perform accurate measurements.
On the touch screen interface, each function is associated to a widget, for quick configuration and monitor purposes, and an online help with cabling instructions is directly accessible on the display.
This product is sold with CAEN
General | Form Factor 2U NIM module |
---|---|
Power consumption | 1.5 A @ 12V (Typ.) |
Functions | Logic Gates (AND/OR/Majority, …) Fan IN-OUT Gate&Delay Veto Coincidence Scaler, MCS Rate Meter Counter Timer Timing (timestamping, ToF, ToT) Digital Pulse Generator |
No. of sections | 4 |
Input per section | 6 NIM/TTL with Gate&Delay and Discriminator stage |
Output per section | 4 NIM/TTL |
I/O delay (ns) | 20 |
Connectors | LEMO |
Counter max. frequency | 50 MHz |
Integration gate | 1 μs … 3600 s |
Connectivity | Ethernet (1Gbps), USB 2.0 |
Touch Screen Display | 2.8″ LCD, Transmissive type |
Software | Touch Screen widgets Web-based Graphical User Interface |
