V2495 family

Programmable Logic Unit PLU

Description

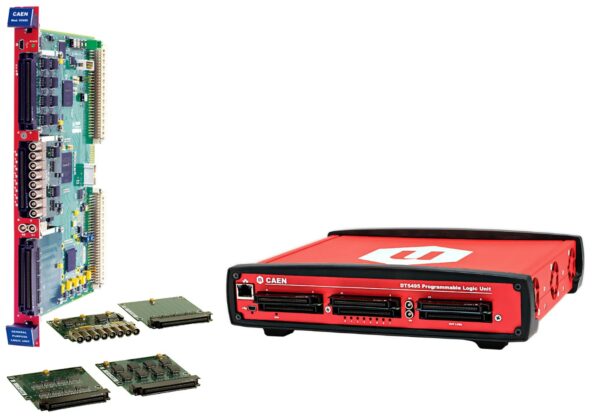

The V2495 is a general purpose programmable FPGA and I/O unit housed in a 1-unit wide VME 6U module. The board is a suitable solution for the implementation of digital functions such as Coincidence, Trigger Logic, Gate and Delay generator, Input/Output Register and more.
The architecture of the V2495 is based on the User FPGA (Altera Cyclone V 5CGXC4, 50K Logic Elements) which is directly interfaced to the front panel I/Os (up to 162 inputs and up to 130 outputs) and to an internal local bus.
The V2495 can be controlled and programmed “on the fly” via the VME Bus or directly through the Mini-USB connector on the front panel. A Software tool is provided for free to easily upload the custom Firmware on the User FPGA.
The V2495 is also completed by 32 internal delay lines that can be used to generate programmable gate and delay signals. The channel interface can be freely expanded by adding up to three independent piggyback boards (there are 3 expansion slots interfaced to the User FPGA), choosing between the five available types:

  • A395A 32 LVDS/ECL/PECL input channels
  • A395B 32 LVDS output channels
  • A395C 32 ECL output channels
  • A395D 8 NIM/TTL input/output channels
  • A395E 8 Analog output 16bit channels

Therefore, the Mod. V2495 can achieve a maximum number of 194 I/O channels.

Features
  • User customisable FPGA Unit
  • LVDS/ECL/PECL inputs (differential)
  • 64 inputs, expandable to 162 (with 32 outputs)
  • 32 outputs, expandable to 130 (with 64 inputs)
  • 32 independent programmable Gate and Delay Generators
  • 3 expansion slots for piggyback board
  • Mini-USB 2.0 Connection
  • Available in Desktop version DT5495

This product is sold with CAEN

Additional information

FORM FACTOR

1-unit wide, 6U high VME64

I/O SECTIONS A and B

Nr. of Channels 32

Direction Input

Logic Direct

Signal Differential LVDS/ECL/PECL
(single ended TTL optional)

Zdiff: 100 Ω

Extended Common Mode Input range: -4V to +5V

Fail Safe input feature

Bandwidth 200 MHz

Front Panel Connector Robinson Nugent P50E-068-P1-SR1-TG type, (34+34) pins

I/O SECTION C

Nr. of Channels
32 channels

Direction

Output

Logic
Direct

Signal

Differential LVDS

Require 100 Ω termination

Bandwidth
250 MHz

Front Panel Connector

Robinson Nugent P50E-068-P1-SR1-TG type, (34+34) pins

I/O SECTION G

Nr. of Channels
2

Direction

I/O selectable

Logic
TTL IN = Direct

TTL OUT = Direct

NIM IN = Invert

NIM OUT = Direct

Signal

Single ended NIM/TTL selectable

Oprn 50 Ω termination selectable

Bandwidth
250 MHz

Front Panel Connector

LEMO 00

GATE and DELAY GENERATOR

Min. Typ. Max.
Minimum Delay/Gate 9.6 ns 10.7 ns 11.8 ns
Maximum Delay/Gate 631 μs 701.2 μs 771.5 μs
Maximum channel-to-channel spread 20%

POWER REQUIREMENTS

1.0A (max.) @ +5V
+12V and -12V rails are not used

A395A Mezzanine Board

no. of ch 32
Direction Input
Logic Direct
Signal Differential LVDS/ECL/PECL (single ended TTL optional) Zdiff: 100 Ω
Extended Common Mode input range: -4V to +5V Fail Safe input feature
Bandwidth 200MHz
Front Panel Connector Robinson Nugent P50E-068-P1-SR1-TG type, (34+34) pins
Power Consumptions 0.1 A (max) @ +5V internal power supply; +12V and -12V power supply are not used

A395B Mezzanine Board

no. of ch 32
Direction Output
Logic Direct
Signal Differential LVDS
Requires 100 Ω termination
Bandwidth 250MHz
Front Panel Connector Robinson Nugent P50E-068-P1-SR1-TG type, (34+34) pins
Power Consumptions 0.1 A (max) @ +5V internal power supply; +12V and -12V internal power supply are not used

A395C Mezzanine Board

no. of ch 32
Direction Output
Logic Direct
Signal Differential ECL
Bandwidth 300MHz
Front Panel Connector Robinson Nugent P50E-068-P1-SR1-TG type, (34+34) pins
Power Consumptions 1.4 A (max) @ +5V internal power supply; +12V and -12V internal power supply are not used

A395D Mezzanine Board

no. of ch 8
Direction Output
Logic I/O selectable
Signal selectable TTL/NIM:
TTL IN = Direct
TTL OUT = Direct
NIM IN = Invert
NIM OUT = Direct
Bandwidth 250MHz
Front Panel Connector LEMO 00
Power Consumptions 1.1 A (max) @ +5V internal power supply; +12V and -12V internal power supply are not used

A395E Mezzanine Board

no. of ch 8
Direction Output
Logic Analog
Signal 16-bit resolution
±5V @10kΩ RL
±4V @200Ω RL
Bandwidth n.a.
Front Panel Connector LEMO 00
Power Consumptions 0.3 A (max) @ +5V internal power supply; +12V and -12V internal power supply are not used
