AN-005 Using hardware Gate and Delay of the V2495 / DT5495 in SciCompiler project

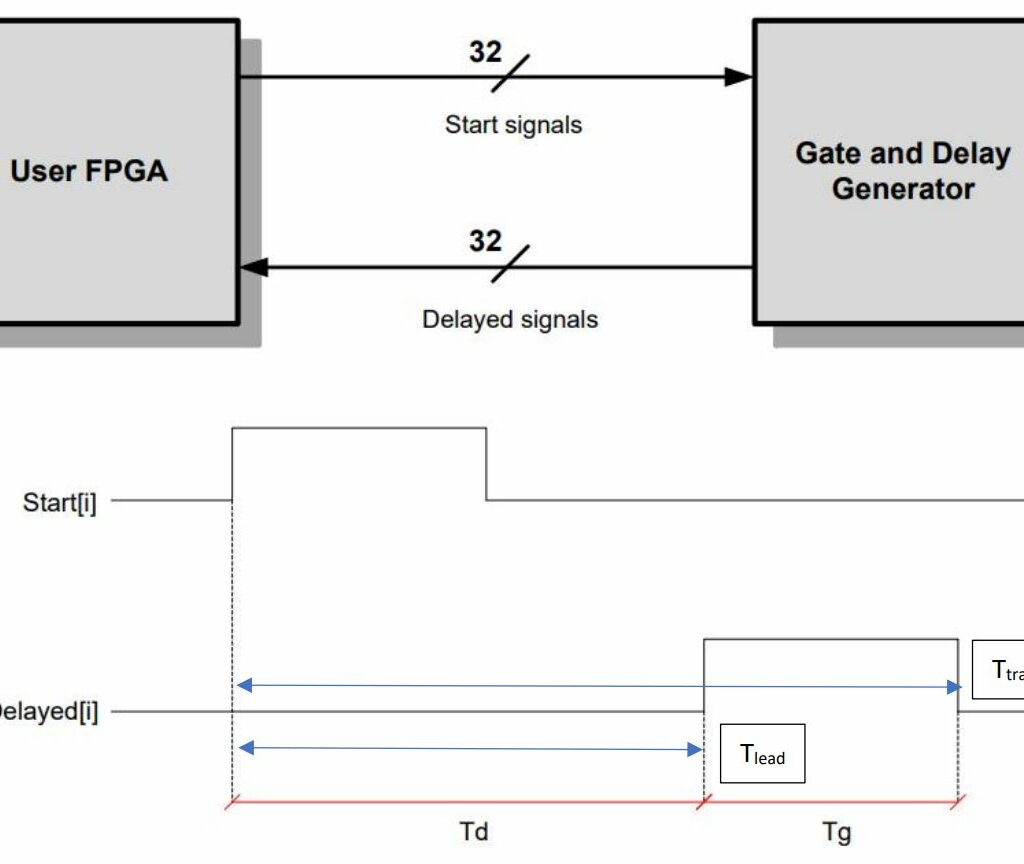

This application note will demonstrate how to use the hardware Gate and Delay of the X2495 board to shape a digital signal introducing a programmable delay and width. The feature exploit the V2495/DT5495 hardware gate and delay generator to implement a jitter-free delay.
The demonstration requires a X2495 board, a signal generator and an oscilloscope.
Due to the usage of a particular hardware component of the X2495 this code can not work on different hardware solution
