DETECTOR EMULATOR DEMONSTRATION
DT5800 KEYNOTE
EMULATED SIGNAL EXAMPLES

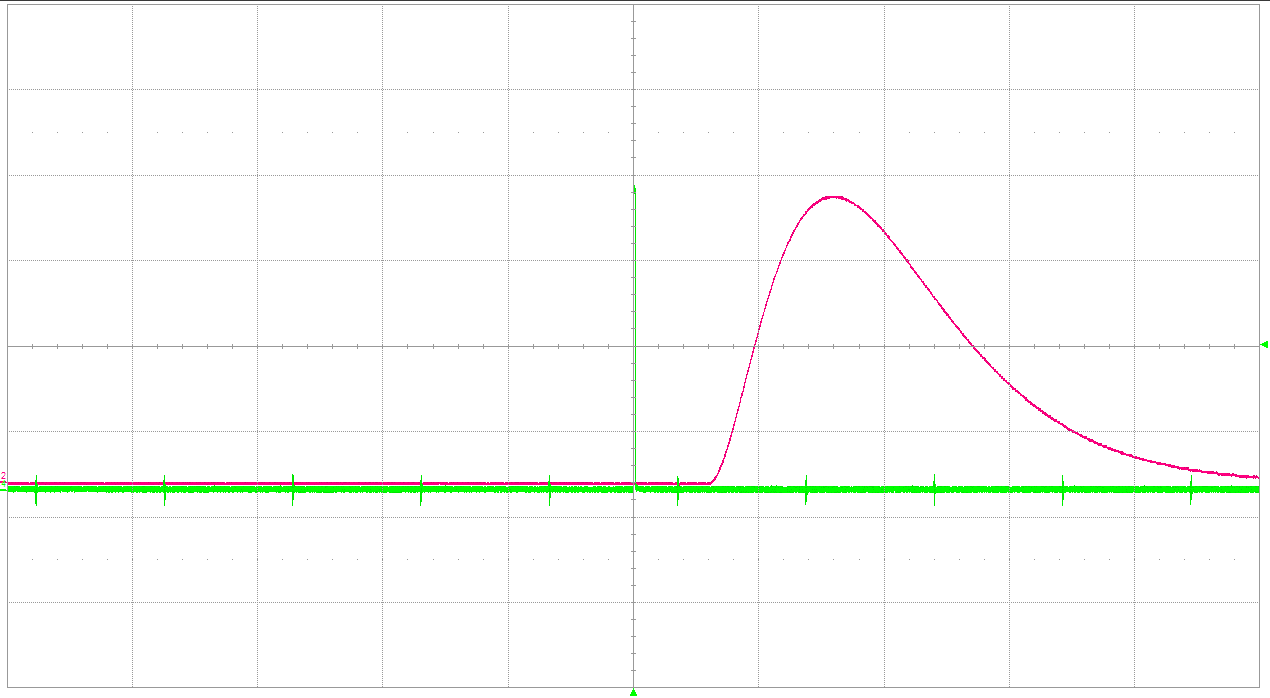

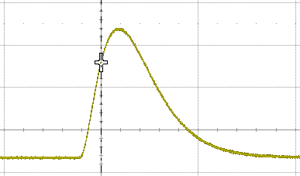

Shaped exponential signal

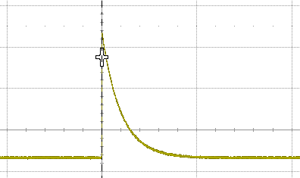

Exponential signal

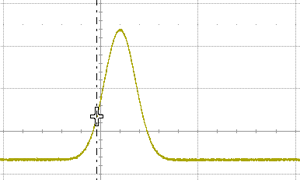

Gaussian signal

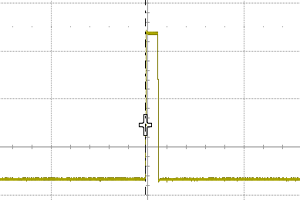

Pulse signal

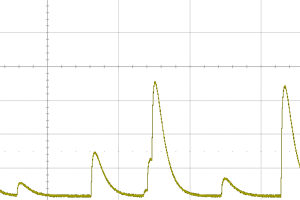

Low rate piled-up signals

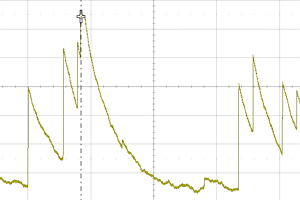

High rate piled-up signals
Piled-up pulses

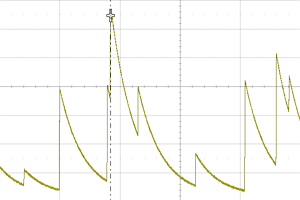

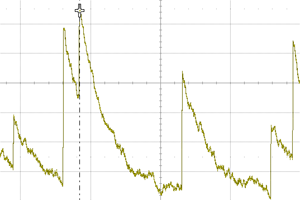

Piled-up shaped exponential

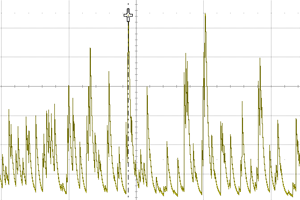

1/f noise (corner frequency 10 kHz)
1/f noise (corner frequency 500 KHz)

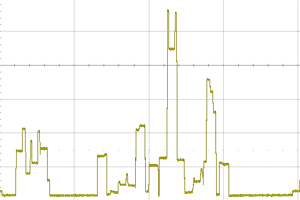

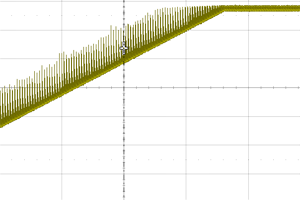

Baseline drift with saturation

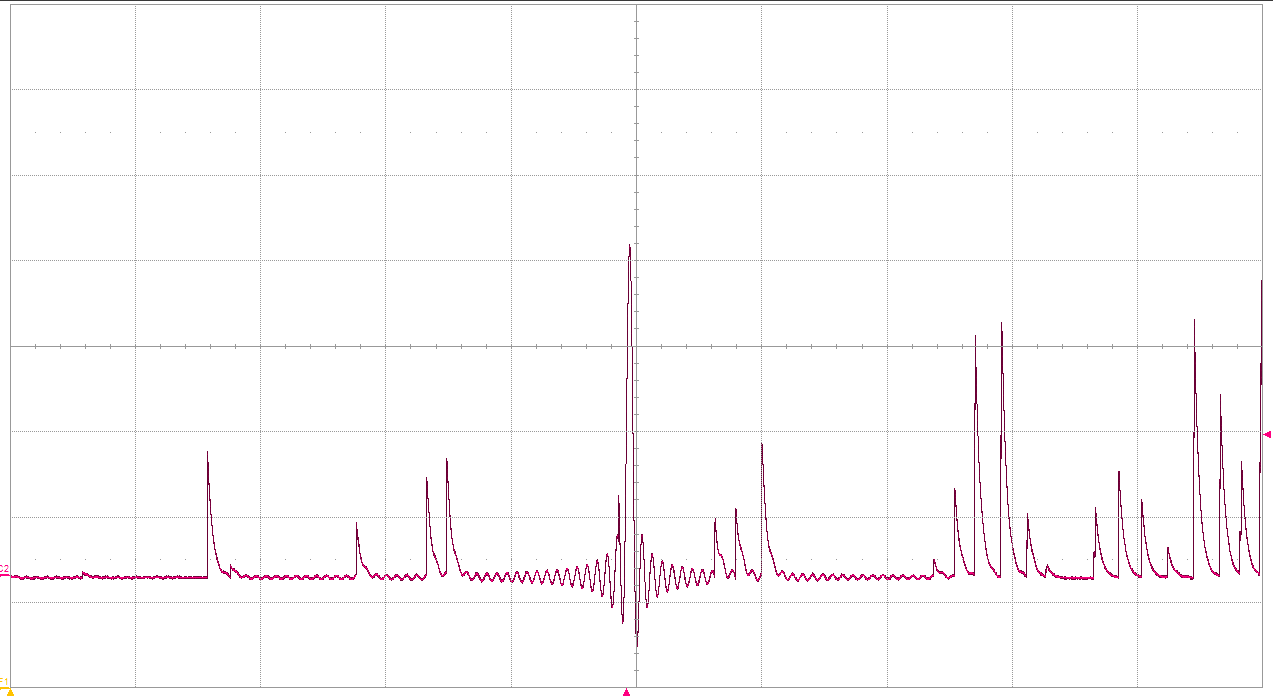

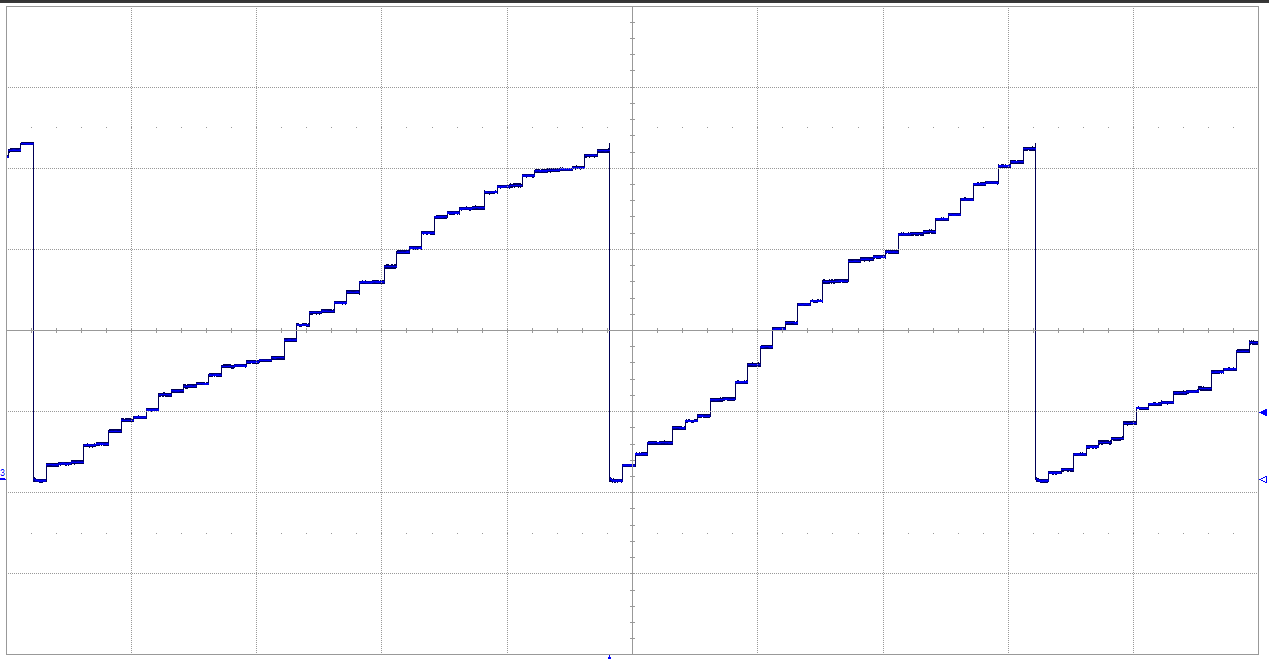

Interference generation. Periodic interference, like switching power supply emission, could be registered in the real system and the generated by the emulator.

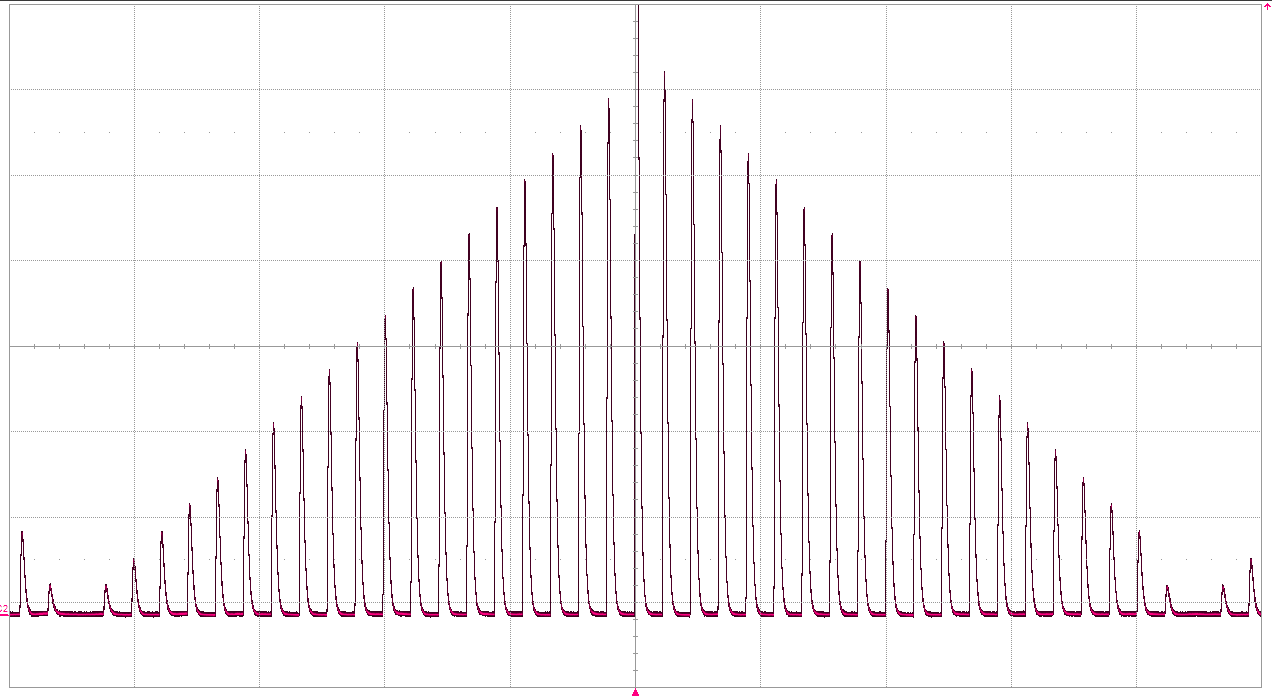

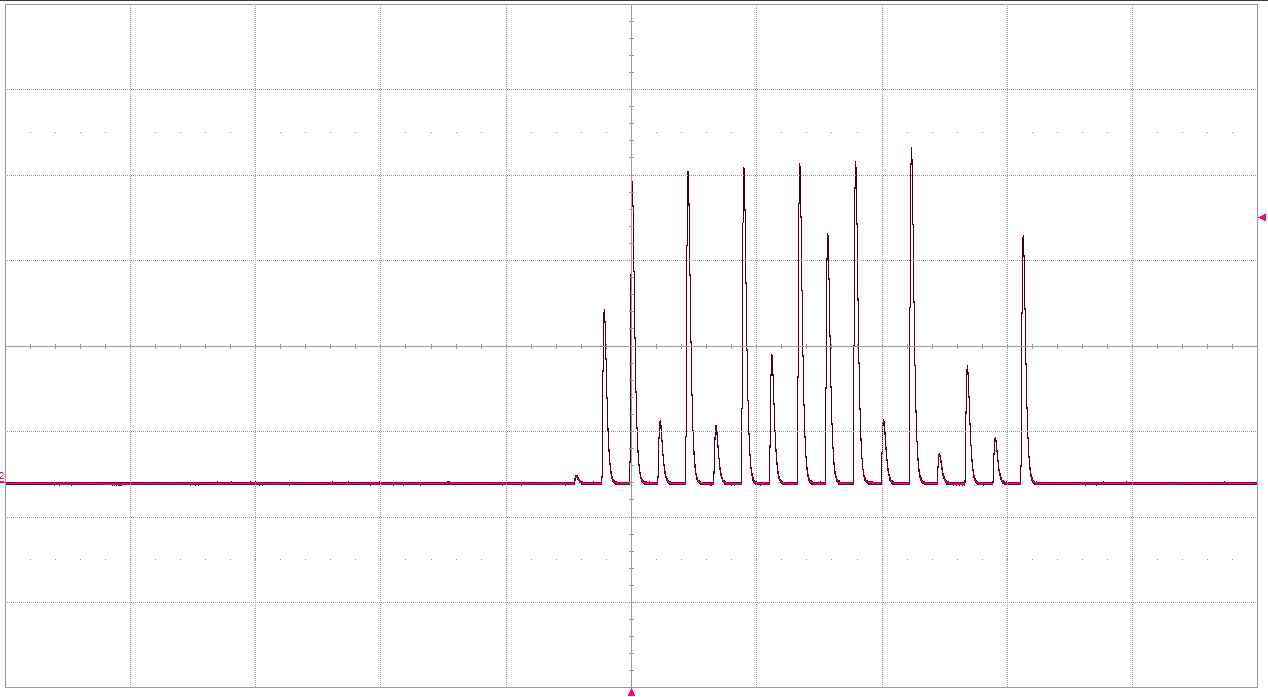

Programmable sequence generation. It is possible to store up to 500Kevents saving for each one energy and time interval. In this way it is possible to generate fixed and predictable (but very long) sequence.
Step-by-step debugging: the internal RNG could be stoped, reset and enabled step-by-step generating finite length sequences (i.e. 16 pulses per step). The seeds of RNG could be resetted to a known value to generate a repetitive (but pseudorandomic) sequence.
Digital programmable auxiliary output to generate for example a pulse trigger output

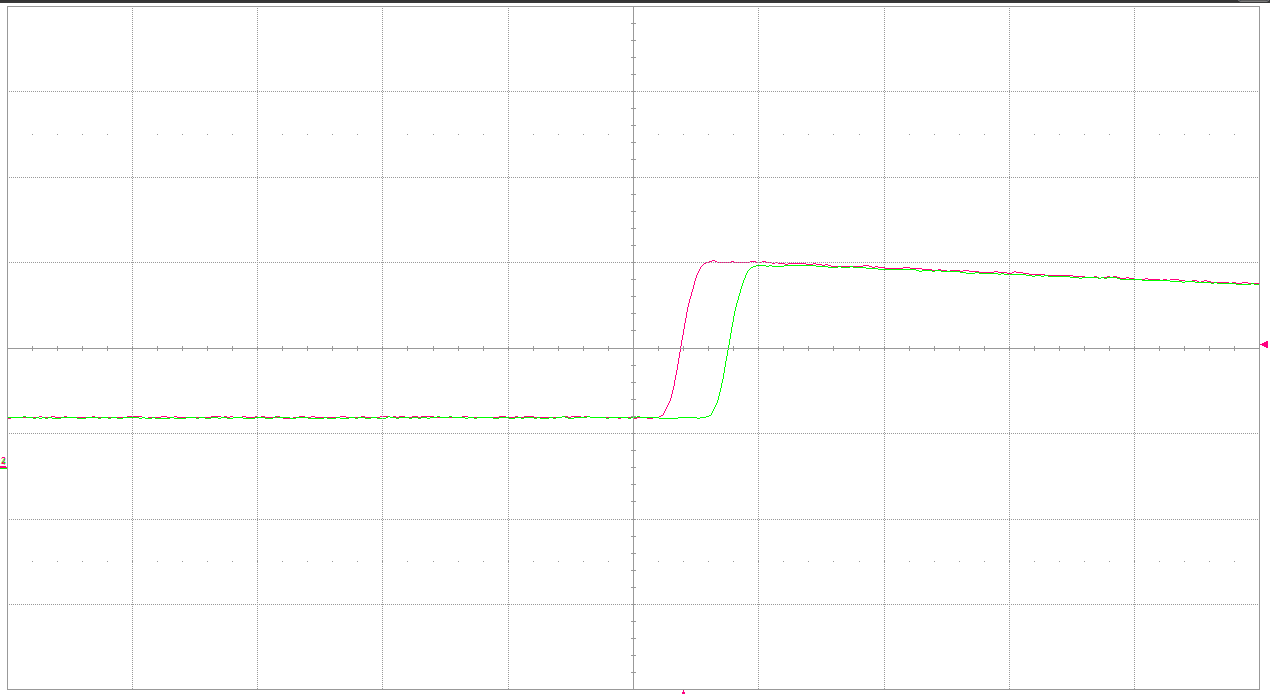

Correlated events emulation: the system is able to generate two pulses on two differente channels with programmable delay (11ps/step)
Pulsed reset detector emulator. The emulator can be programmed to emulate the output of a real charge amplifier.
DETECTOR EMULATOR CONTROL CENTER SOFTWARE SCREENSHOT

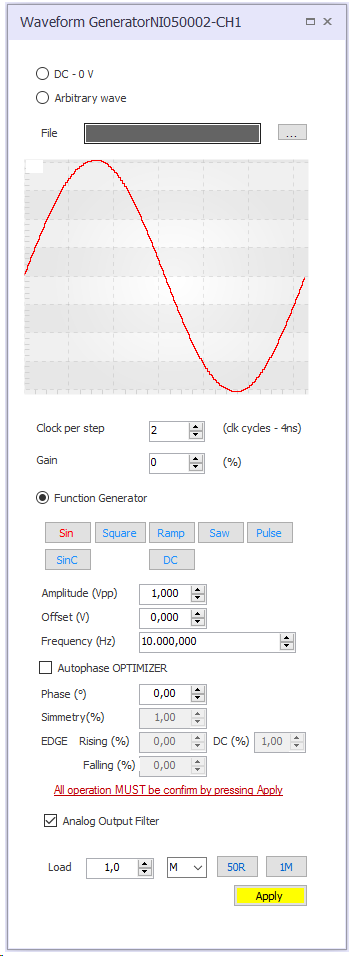

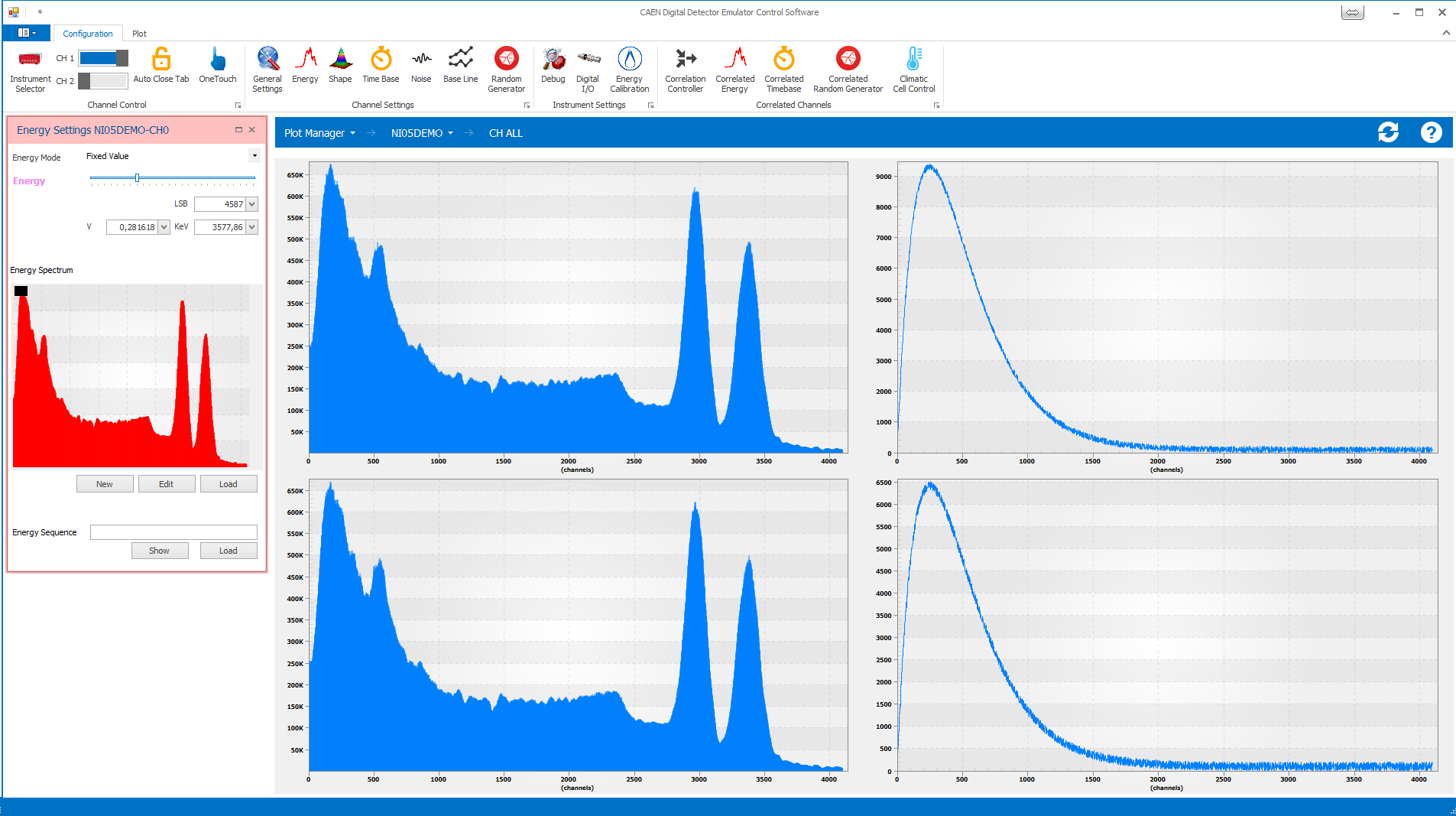

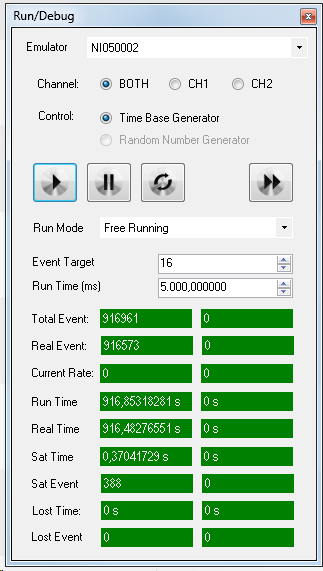

Detector Emulator control center software main screen

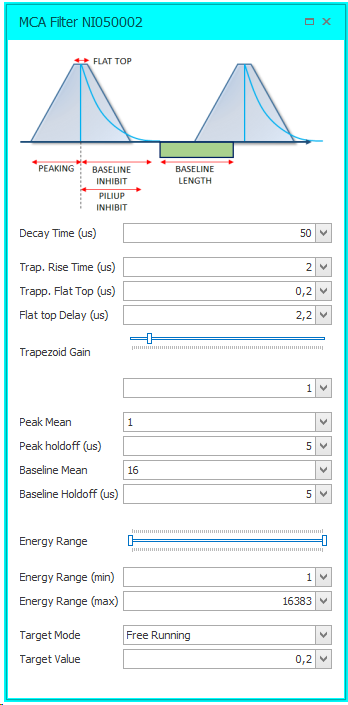

MCA filter configuration

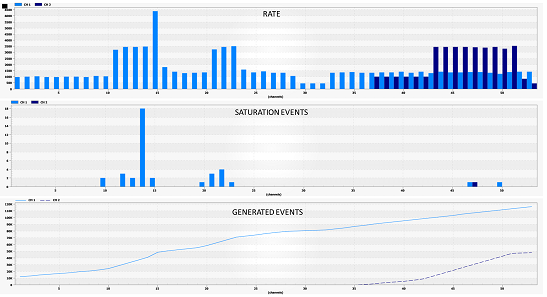

Realtime monitor of emulation process statistic

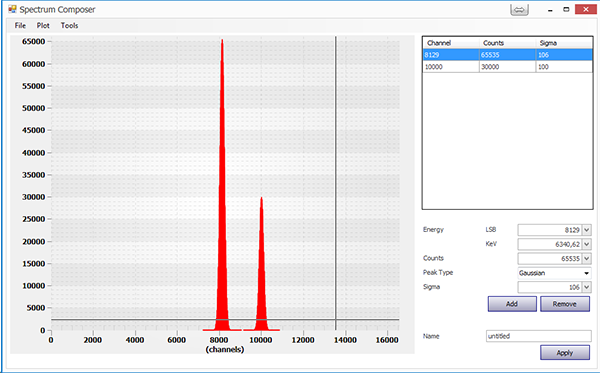

Embedded spectrum design allows the user to create arbitrary complex spectrum
User can import spectrum from different file type (CSV, DAT, N42)

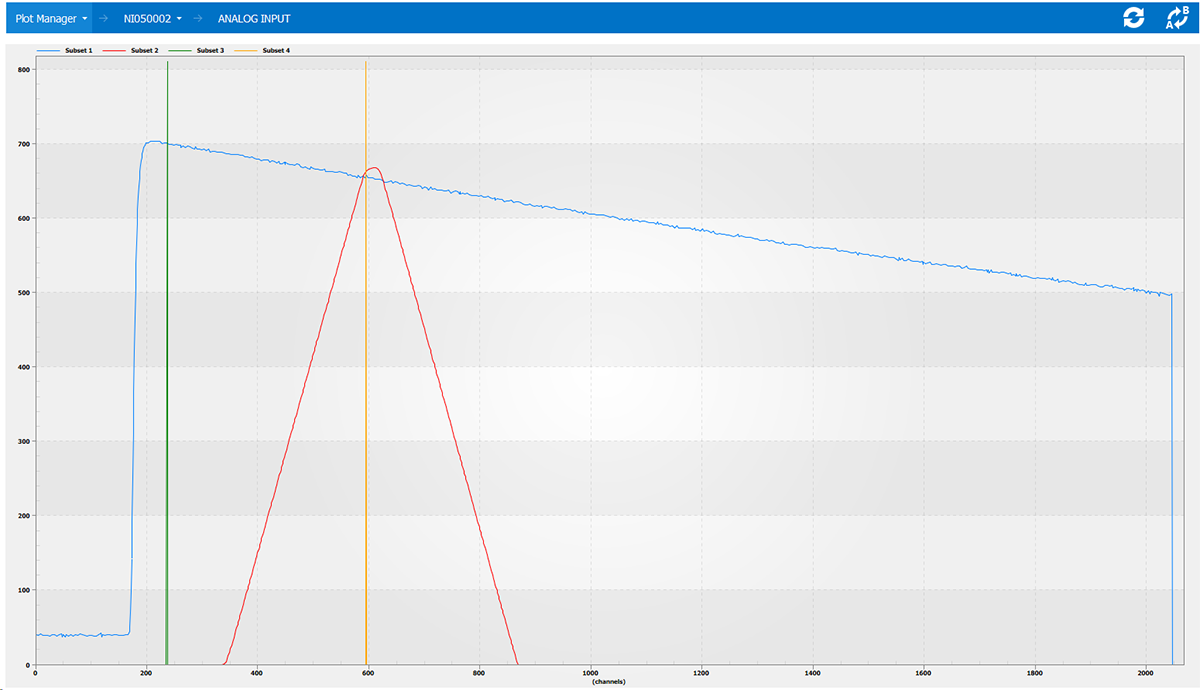

Embedded MCA function to characterize real detection systems to initialize the emulation process

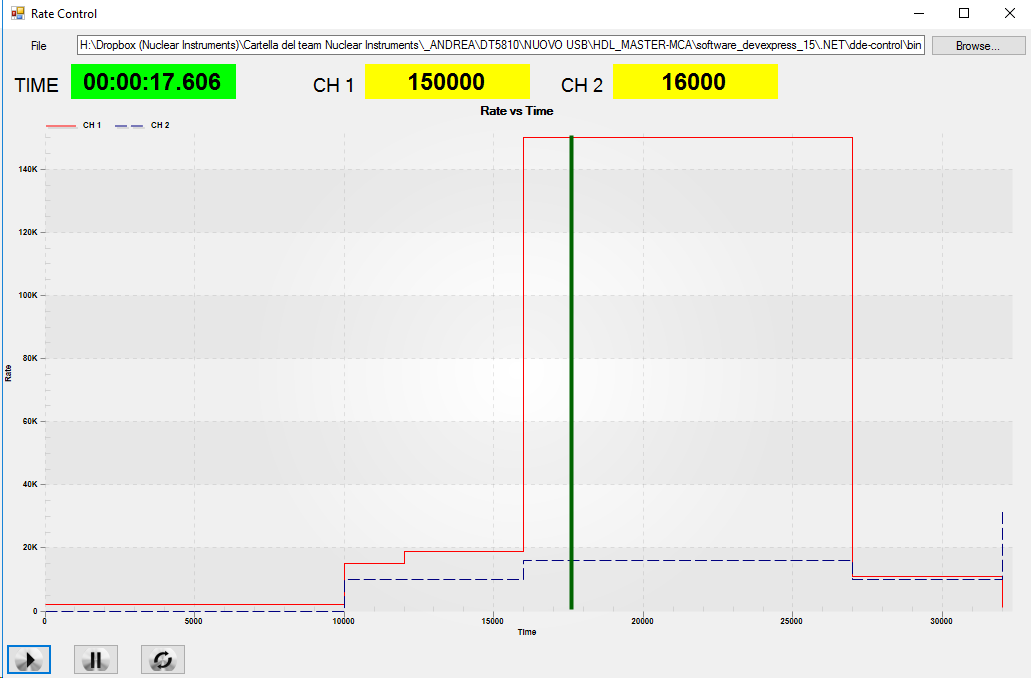

Rate profile: allows the user to program the emulator with a list of time,rate

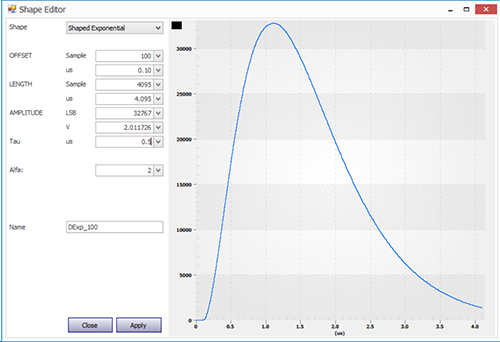

Embedded shape configurator allows the user to create arbitrary shape

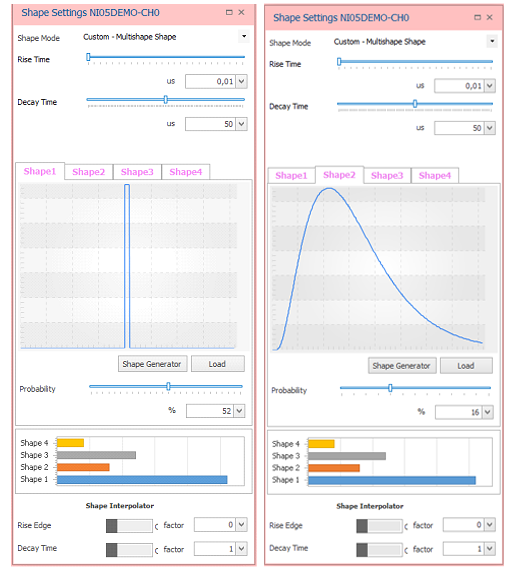

Up to four different shape could be configured in multishape mode
