The A7525DU SiPM Power Module is a compact and integrated solution to provide stable and noiseless power supply for single and array / matrix SiPM detectors. High resolution Output Voltage and Output Current measurements enable the NIPM12 to be used for I-V detector characterization. Digital (I2C and USB) and analog control interface are runtime selectable by a single pin or a digital command. The module integrates a temperature HV loop that regulates the SiPM output voltage as a programmable function of the SiPM temperature coefficient.


  • 20-85V Output Voltage
  • 10mA Output Current
  • 1mV Output Voltage step
  • Less than 300uV rms noise, less the 100uV for frequency > 10KHz
  • User Selectable Digital / Analog output voltage control
  • Automatic temperature feedback on the output voltage
  • Support for remote analog temperature sensor on the detector unit
  • Internal memory for permanent storage of calibration and configuration
  • I2C digital control + Analog input (0-4.5V)
  • Real-time Output Voltage and Output Current monitoring
  • 600nA resolution on measured Output Current
  • 1.5 mV resolution on measured Output Voltage
  • 0.05 °C resolution on measured Temperature
  • Programmable Voltage and Current compliance
  • Extremely compact: 35 x 39 x 5 mm
  • Through-holes 2.54mm connector
  • Input Voltage: 5V – 26V (self powered mode)
  • Power consumption: 100 mW (without load)
  • USB powered


NIPM12 module is a complex SoC that integrates an high voltage generator and a monitor system. Both input LDO and output filter operate to minimize the output noise shaping it to limit as much as possible the high frequency noise (over 10KHz).
The integrate microcontroller implements a VT100 interface, a serial protocol and an I2C interface.
The module can also controlled in analog way using a regerence voltage and control pins.

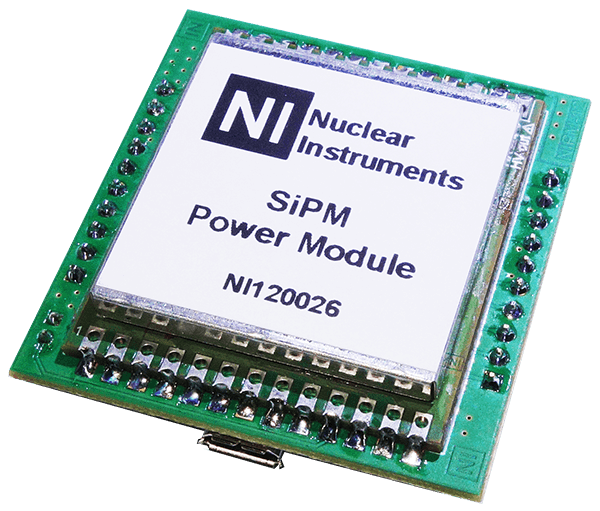

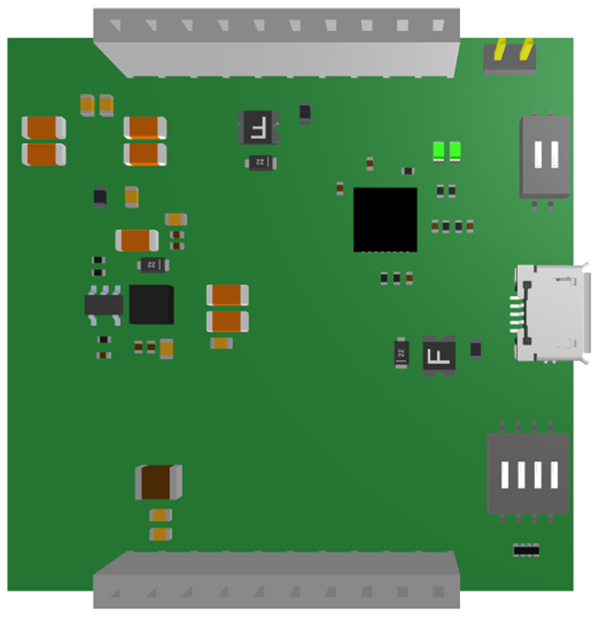

NIPM12-USB is a ready to use module that integrate a NIPM12 module, a USB controller and a voltage boost. The module has a 2.54 mm connector to integrate it in the user circuit and a USB connector to connect it directly to a PC.
The module can operate in self-power mode or powered directly from USB.

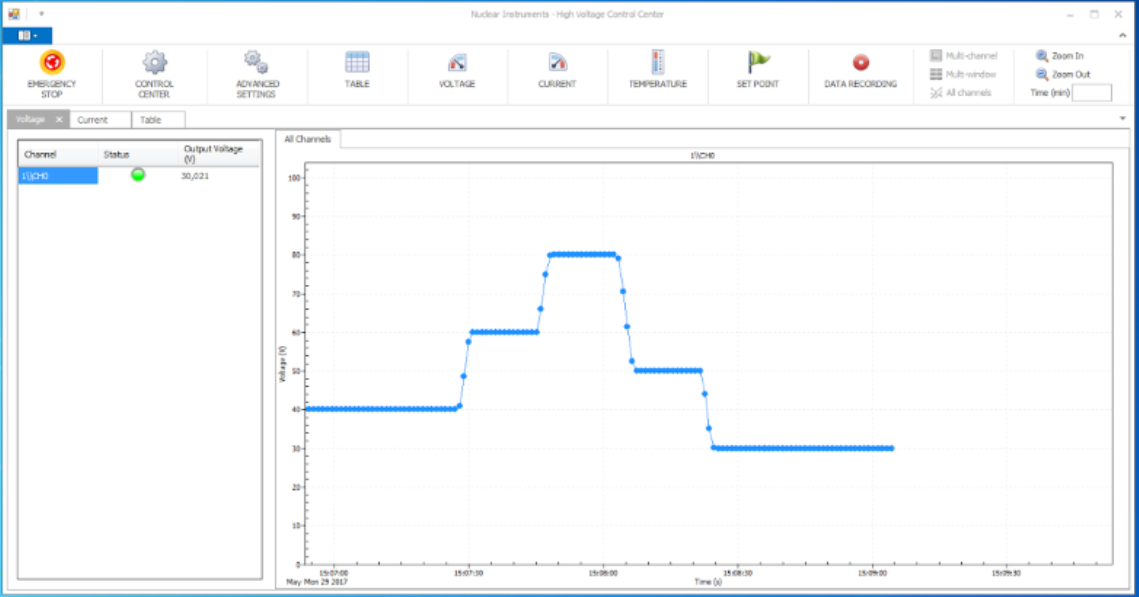

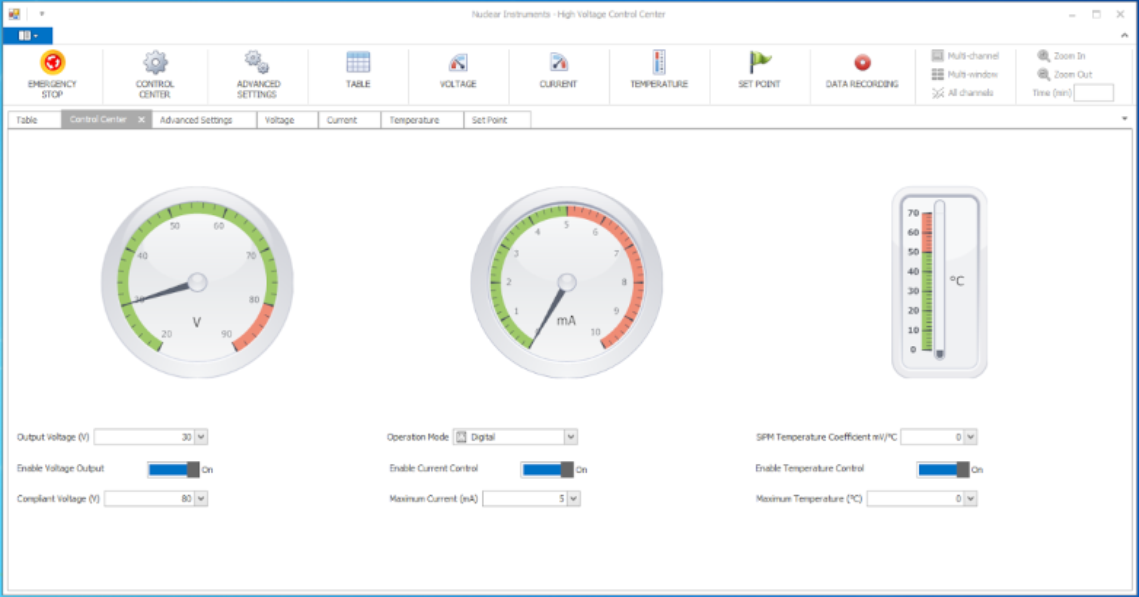

ZEUS is a Windows compatible software that allows to control multiple NIPM12 and NIPM12-U modules using RS232 or USB connection. The software is based on a user friendly GUI that allows the parameters configuration and the data logging on file. It integrates realtime plot capabilities (voltage, current and temperature) with the possibility to superimpose measuraments from several modules. ZEUS software is the simplest way to program temperature LUT compensation.


Real-time data collection: high resolution plot of voltage, current and detector temperature

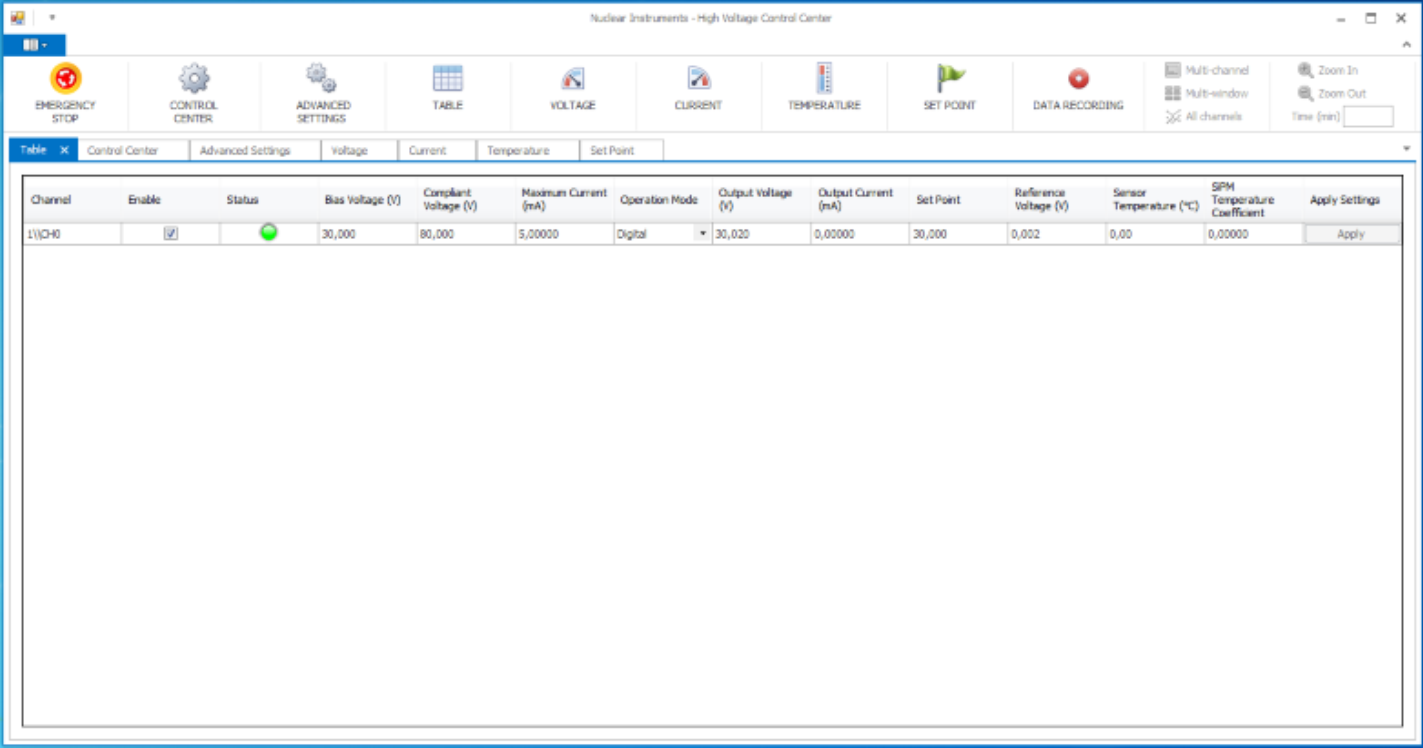

Managing of multiple modules with a simple parameters table

This product is sold with CAEN

Additional information

Supply Voltage

6 ÷ 28 V

Maximum Input Current

210 mA

Maximum Power Consumption

5 W

Temperature Range (no load)

-20 ÷ +80 °C

Storage Temperature

-40 ÷ +120 °C

Output Voltage

20 ÷ 85 V

Output Current

10 mA max.

Output Voltage Ripple

0.1 mVp-p typ.

Settling Precision

± 20 mV

Temperature Stability

25 ± 10 °C mV/°C

Output Impedance

10 Ω
