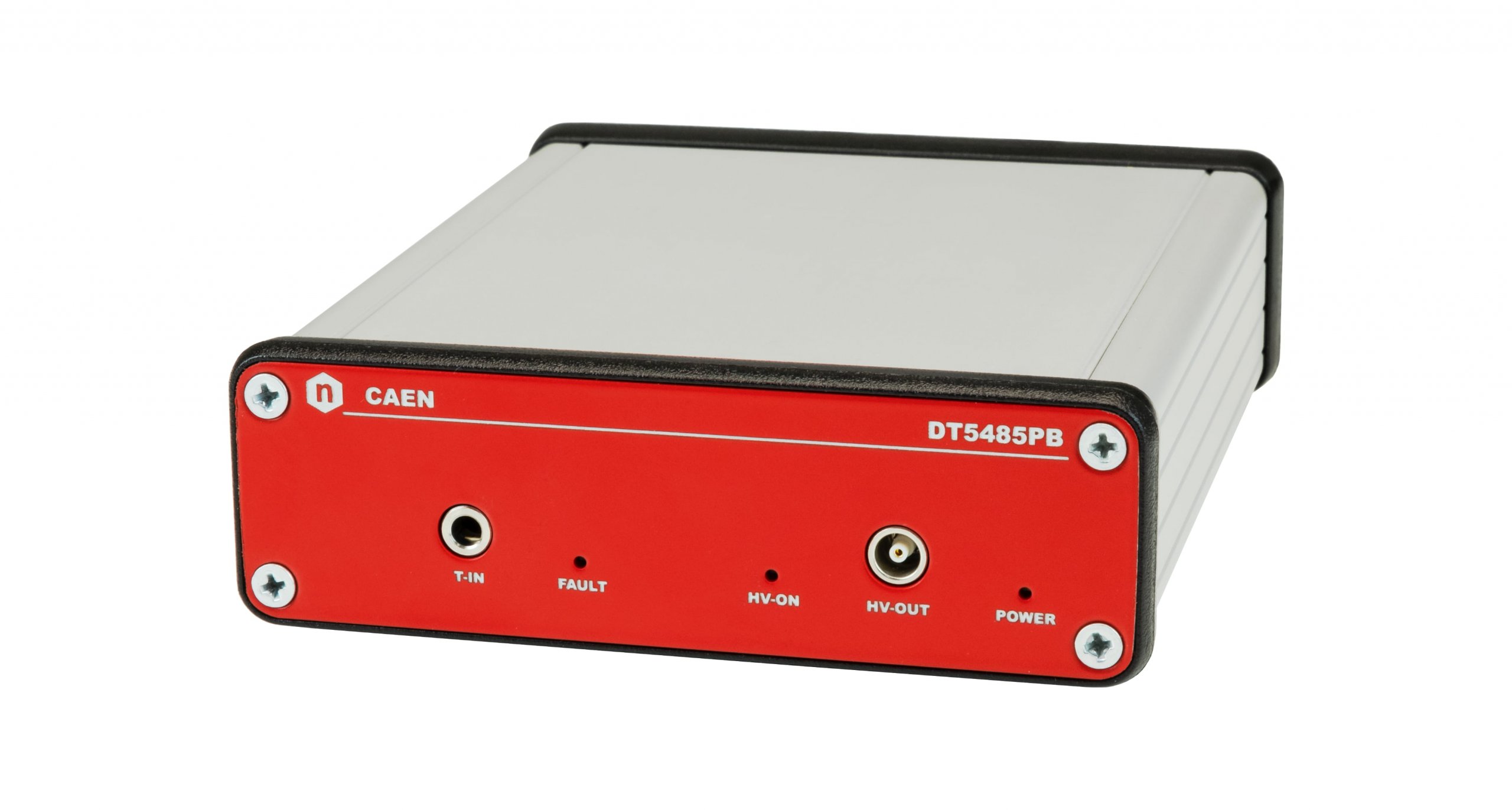

DT5485PB

Desktop +85 V/10 mA Digital Controlled SiPM Power Supply with USB

Description

  • Single Desktop HV channel, two versions available:
    • DT5485P: powered and controlled by USB
    • DT5485PB: controlled by USB, with +12V external power supply
  • 20÷85 V (10 mA) output range
  • Suitable for large SiPM matrix
  • LEMO 00 output connector
  • Very low ripple
  • High resolution on voltage and current monitor: 10 mV and 60 nA
  • Programmable temperature compensation
  • 3.5mm audio socket for temperature probe input



The DT7585P is a high voltage regulator specifically designed for SiPM bias. It has a built in temperature compensation controller with programmable coefficient (3.5mm audio socket for temperature probe input). The module is supplied and controlled via USB. The unit can provide up to 10 mA and the output voltage could be regulated between 20V and 85V with a resolution of 1mV on a LEMO 00 connector. Moreover, the ZEUS control software is provided for free; ZEUS allows to monitor and control multiple modules at same time.

  • Single Desktop HV channel powered and controlled by USB
  • 20÷85 V (10 mA) output range
  • Suitable for large SiPM matrix
  • LEMO 00 output connector
  • Very low ripple
  • High resolution on voltage and current monitor: 10 mV and 60 nA
  • Programmable temperature compensation
  • 3.5mm audio socket for temperature probe input
  • Software Tool for easy channel management

ZEUS SOFTWARE

ZEUS is a Windows compatible software that allows to control multiple NIPM12 and NIPM12-U modules using RS232 or USB connection. The software is based on a user friendly GUI that allows the parameters configuration and the data logging on file. It integrates realtime plot capabilities (voltage, current and temperature) with the possibility to superimpose measuraments from several modules. ZEUS software is the simplest way to program temperature LUT compensation.



Real-time data collection: high resolution plot of voltage, current and detector temperature

Managing of multiple modules with a simple parameters table

This product is sold with CAEN

Additional information

Maximum Power Consumption

5 W

Temperature Range (no load)

-20 ÷ +80 °C

Storage Temperature

-40 ÷ +120 °C

Output Voltage

20 ÷ 85 V

Output Current

10 mA max.

Output Voltage Ripple

0.1 mVp-p typ.

Settling Precision

± 20 mV

Settling Resolution

1.2 mV

Output Impedance

10 Ohm
