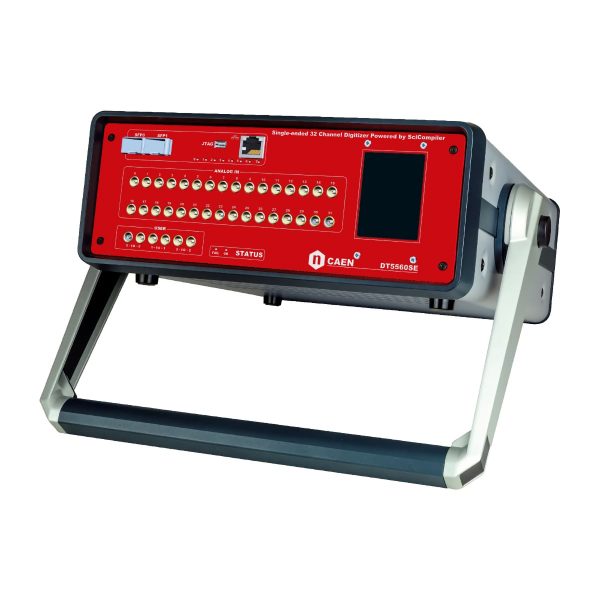

DT5560SE

32 Channel 14 bit 125 MS/s Open FPGA Digitizer

Description

The DT5560SE is a Desktop 32 Channels 14-bit 125MS/s Open FPGA Digitizer with Single-Ended inputs, designed to attain programmable data processing capabilities.

The R5560SE is designed as a solution for lab development, prototyping and system testing. It is suitable for a wide variety of experimenst in prototyping phase, especially for the readout of Physics detectors (like PMTs, Segmented HPGe, Gas Tubes, ….) in small setups, where it is important to have a compact system and the possibility to easily change the pulse processing algorithm. The advanced Front-End allows to easily connect and manage most of the detectors commonly used in Physics Experiments.

Thanks to the 32 Single-Ended Channels on LEMO, it allows an easy connection to the detectors and speeds up the development time. The Desktop form factor simplifies the use in laboratories and the Open FPGA allows to easily change the pulse processing algorithm for prototyping purposes.

SCI-Compiler software, the CAEN block-diagram-based firmware generator and compiler, helps in programming the FPGA to develop intensive real-time data processing .

A free and open-source demo readout software is available to manage the standard pulse height analysis firmware implementing energy measurements using a trapezoidal filter.

Application

  • Readout of the following detectors for testing/small experiment purposes:
    • Neutron Detector (3He tubes, position sensing tubes)
    • HPGe, Segmented germanium detector
    • Array/matrix of PMTs
    • Position sensing detectors (for application like gamma camera) with real-time position reconstruction
    • CdTE and CZT detector
    • Neutron scintillator detectors with Gamma Neutron discrimination
Features
  • 32 channels, 14-bit @125 MS/s Desktop Digitizer
  • Single-ended inputs with advanced programmable Front-End
  • Based on powerful Xilinx Zynq-7000 SoC with open FPGA
  • Suitable for lab development, prototyping and testing with commonly used Physics detectors (PMTs, Gas Tubes, HPGe, ….)
  • 2 Vpp input dynamic
  • Fully supported by SCI-Compiler for easy FPGA programminge.
  • Configurable digital I/Os to interface with external systems
  • Maximum flexibility: Micro-USB, Ethernet and Optical Link connectivity , to support remote management as well as extreme fast data flow
  • 2.4” touch screen display for quick configuration and status control

This product is sold with CAEN

Go to CAEN product page

Additional information

Analog Input

Channels
32 channels Single Ended

Full Scale Range
2 Vpp

Connector
LEMO 00 (50 Ω)

Bandwidth
60 MHz
Digital Conversion

Resolution
14bits

Sampling Rate
125 MS/s Simultaneously on each channel
Clock Generation

Clock source: internal/external
On-board programmable PLL provides generation of the main board clocks from an internal (25 MHz local
Oscillator) or external (rear panel CLK-IN connector) reference
External Clock from Sync connector with clock and sync propagation
Clock recovery and propagation from optical link with integrated jitter cleaner
LEMO Digital I/O

USER IO 0…5 (LEMO)
Programmable Digital I/O:s can be used as Trigger, Start, Busy
IN/OUT
Single-ended, Zin / Rt = 50 Ω
Trigger

Trigger Source
Internal/External: managed by the default firmware

Complex trigger logic: implementable by the user on the open FPGA

Trigger Propagation
Through LEMO and Sync Connector

Trigger Time Stamp
Default FW: 32-bit counter, 8 ns resolution, 26-day range;
Custom FW: defined by the firmware design
FPGA

Open FPGA
Xilinx Zynq-7000 SoC Z-7030
Memory

1 GByte
Communication Interface

All readout interfaces allow to perform the same task at different speed and using different media. They can be used independently or simultaneously.
The different readout interface allows to integrate the DT5560SE in existing experimental environment.

Ethernet
1 Gbps

Micro-USB
Communcation and FPGA debugger

Optical Link
12.5Gbps link (bidirectional): can operate as point to point or in daisy chain mode
Firmware

Default
Waveform recording and Pulse Height Analysis
Ethernet communcation
Custom
Use SCI-Compiler to develop your own firmware
Firmware Upgrade

Firmware can be upgraded via Ethernet or Micro-USB
Software

SCI-55X0 Readout Software to manage the default firmware
SCI-Compiler for custom firmware development
